Duoface

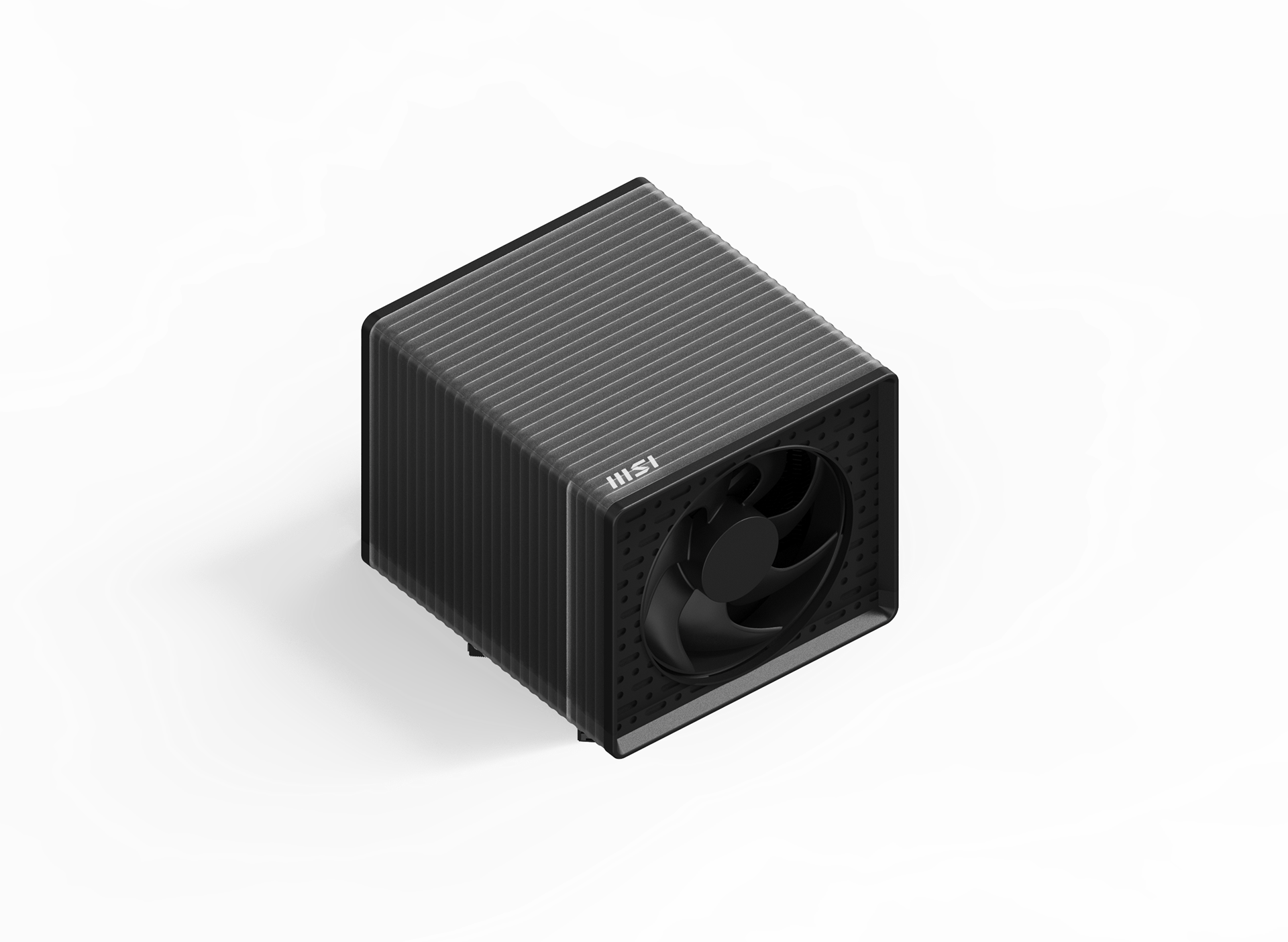

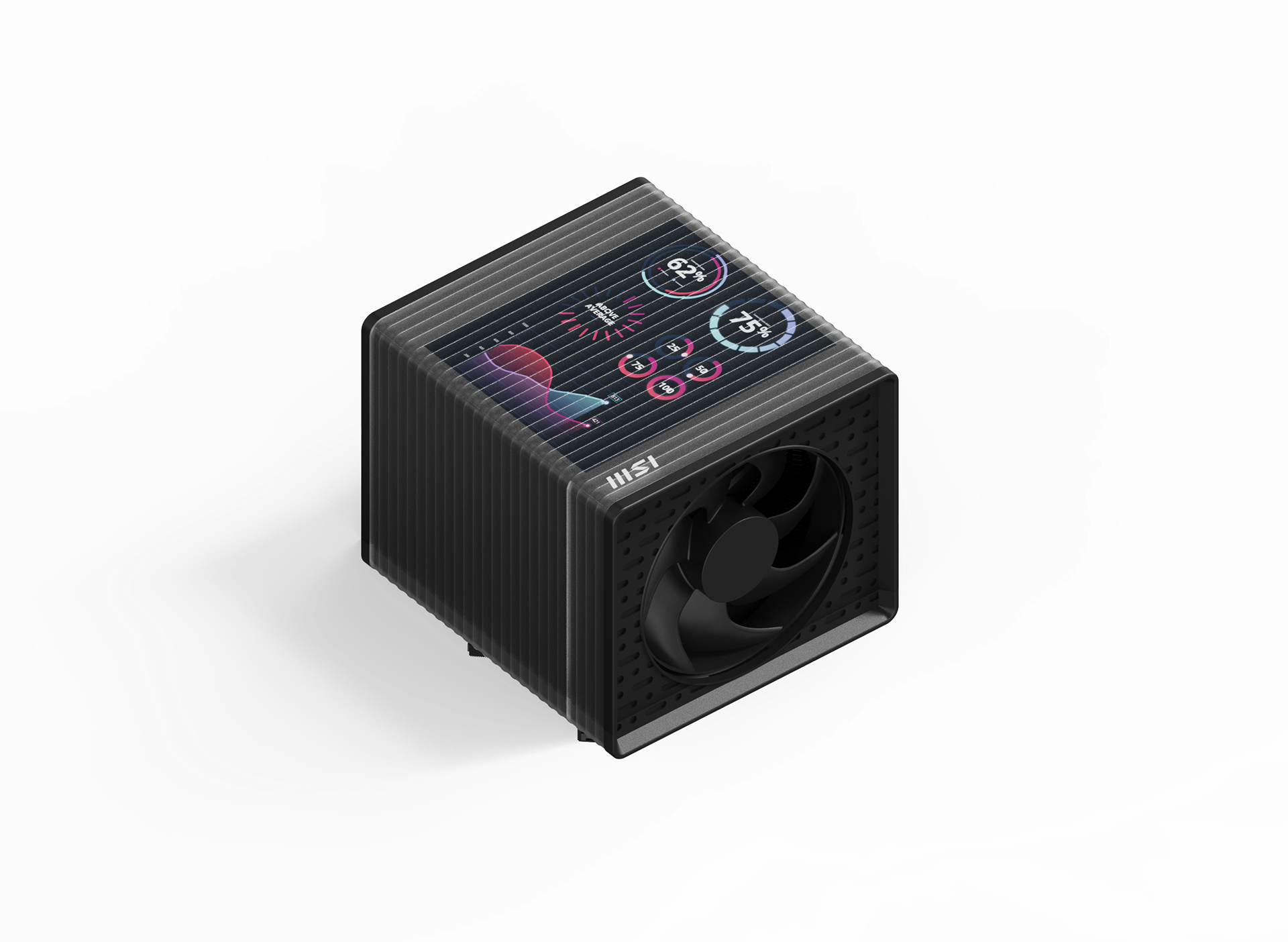

CPU air Cooler Concept
A premium twin-tower air cooler equipped with wireless swappable components and flexible configurations.
Than client's current product lineup
MSI
2025
Individual Project
Role: ID, CAD, CMF, Rendering
Software: Solidworks, Keyshot
Duration: 48 hours
Production (y/n): n
Background
Over the last few years, the CPU cooler landscape has evolve significantly, shifting its focus towards thermal improvements, product stability and the mainstream adoption of the liquid-cooled AIOs (All-In-Ones)
As the market progresses, AIO design has evolved from using stylized covers to integrating small OLED displays as the top of the CPU—usually the prime real estate in a build—is not functionally required for heat dissipation.
a trait that has find its way back to air cooler designs.
Due to its customizability, this area has quickly become a dedicated space for visual expression—a trait that has found its way back into air cooler designs.
1
objectives

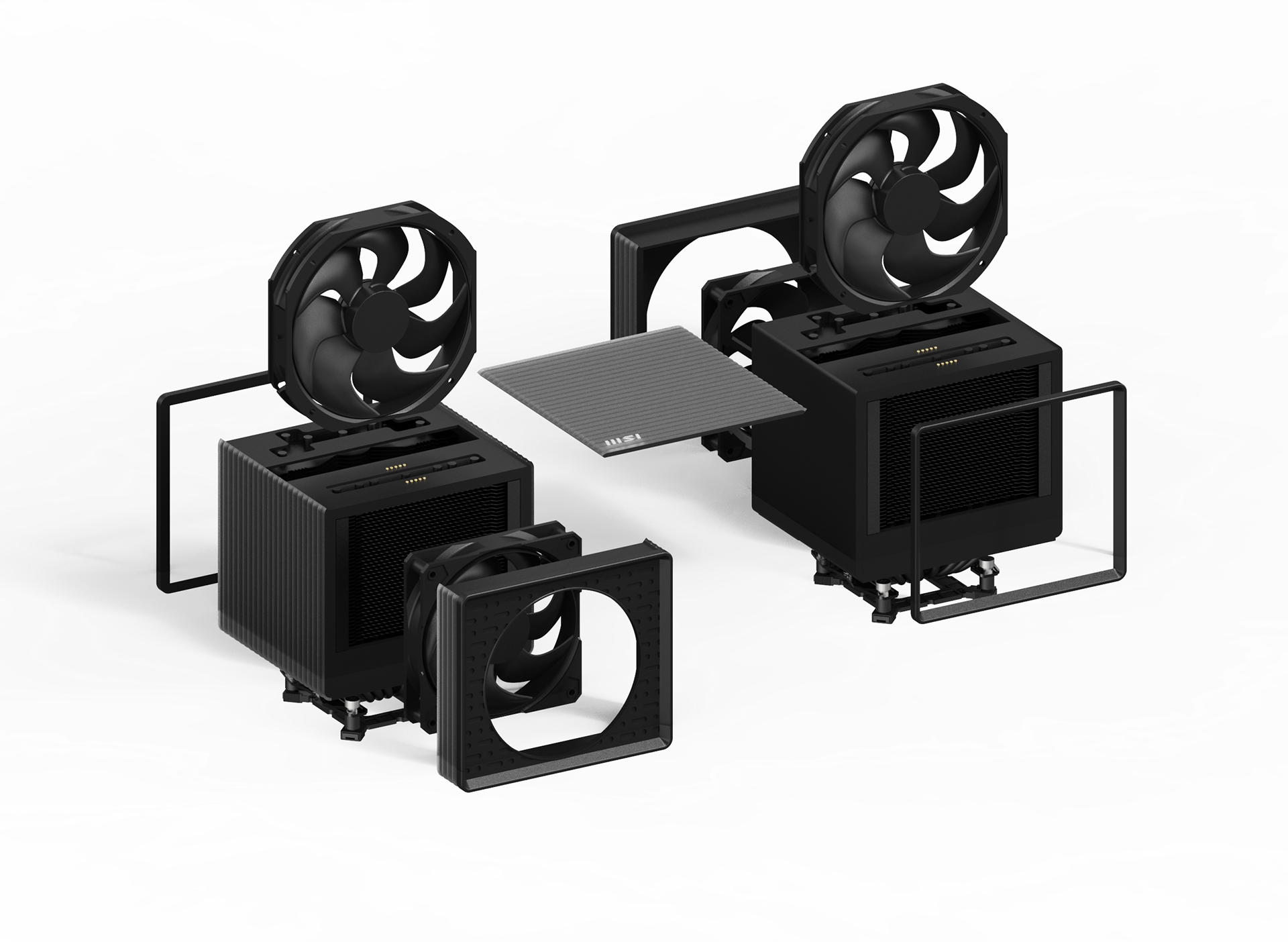

A rapid conceptual rendering based upon a production-ready thermal solution that incorporates a wireless OLED display and bidirectional airflow (intake/exhaust) support.
Accumulative Aesthetic
Given the tight turnaround, the concept leverages previous CMF researches, utilising dual-shot injection- moulded panels and IMD technique to achieve a dead-front aesthetic and maintain visual continuity.

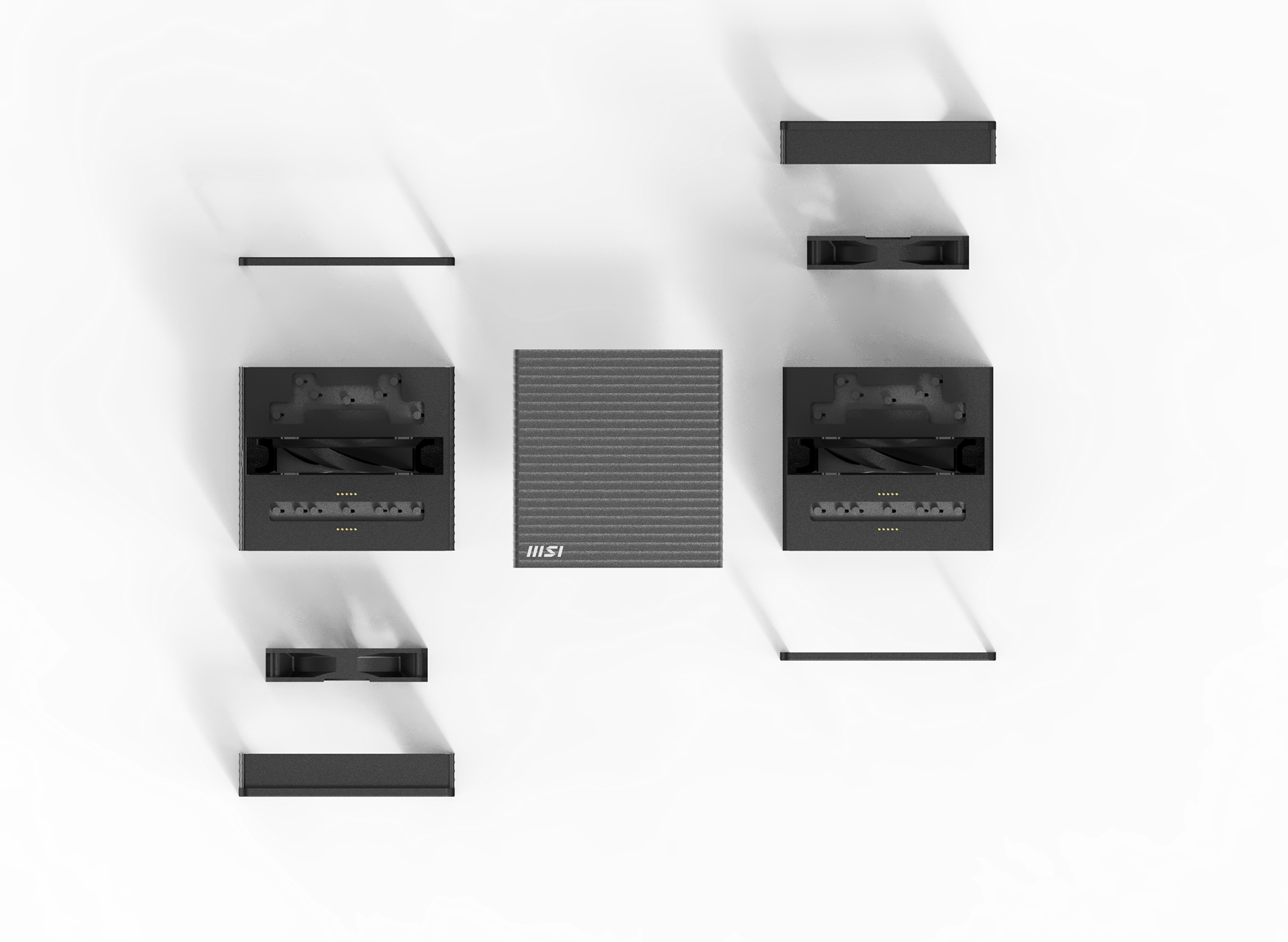

Modular interchangeability

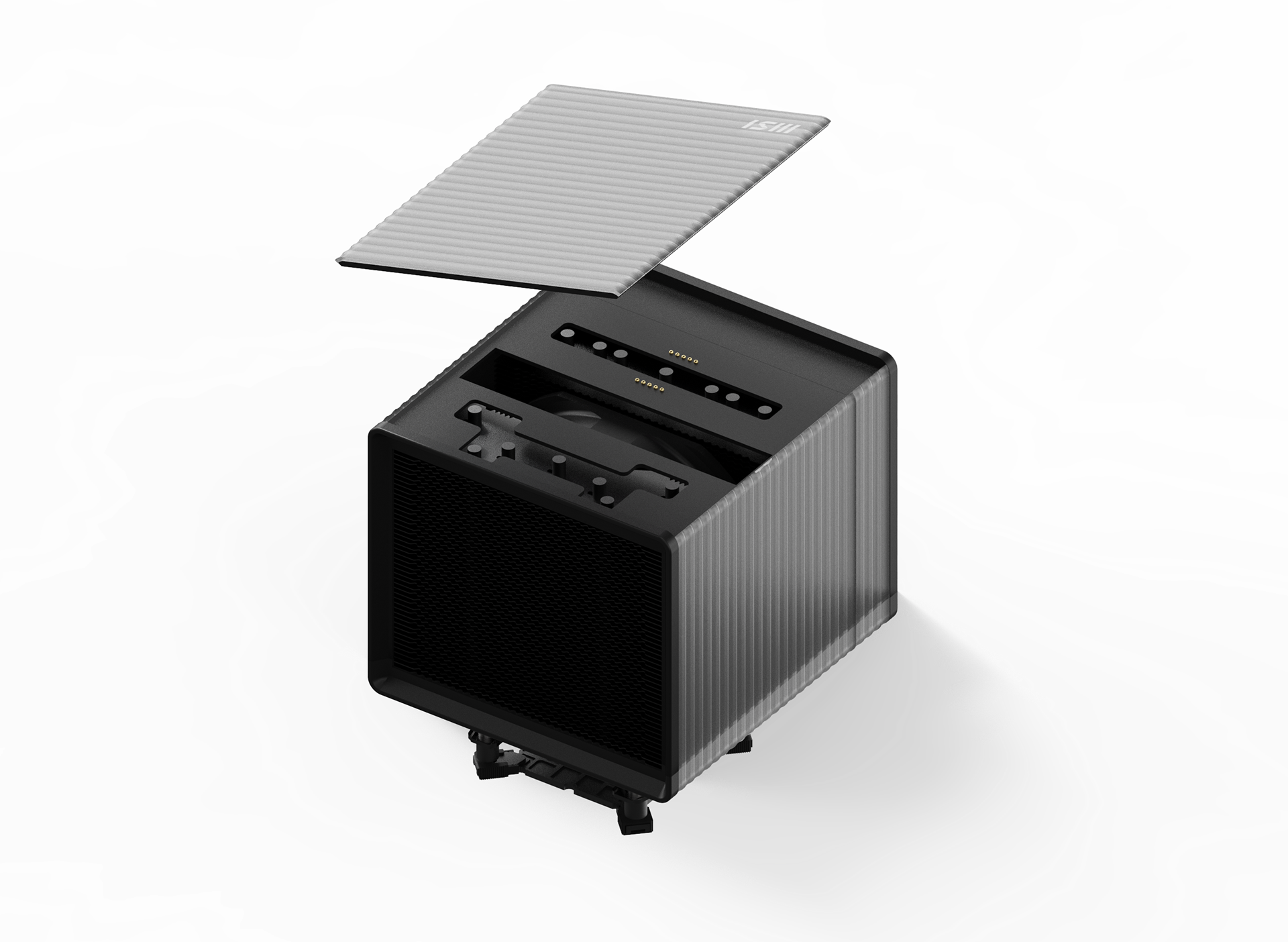

The display is housed in a magnetic panel casing, interfacing with the main unit via pogo pins at 2 locations.
Modular interchangeability enables display-specific configurations, reducing tooling overhead across the product range.
Furthermore, the module can be used for cross-platform integration within the PC ecosystem such as chassis, GPUs and coolers, offering standalone retail potential.
Modular interchangeability
The display is housed in a magnetic panel casing, interfacing with the main unit via pogo pins at 2 locations.
Modular interchangeability enables display-specific configurations, reducing tooling overhead across the product range.
Furthermore, the module can be used for cross-platform integration within the PC ecosystem such as chassis, GPUs and coolers, offering standalone retail potential.

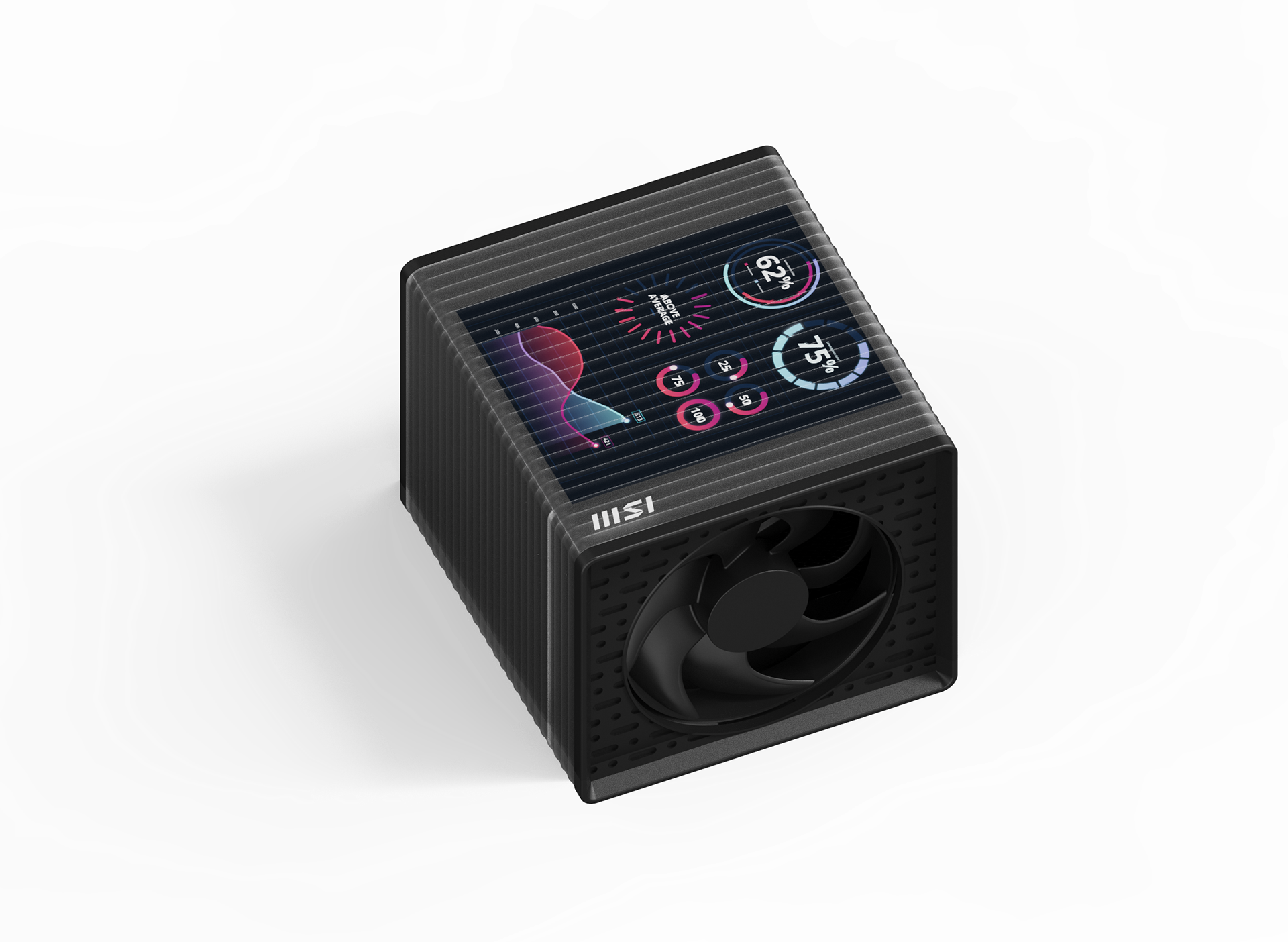

Cable-free display
The display is housed in a magnetic panel casing, interfacing with the main unit via pogo pins at 2 locations.
The swappable architecture enables display-specific configurations, reducing tooling overhead across the product range.
Furthermore, the module can be used for cross-platform integration within the PC ecosystem such as chassis, GPUs and coolers, offering standalone retail potential.
